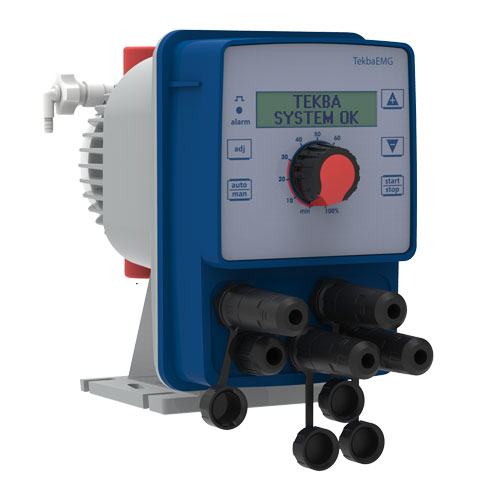

EDP-ED series dosing pump
The EDP-ED series dosing pump is a professional electromagnetic driven diaphragm pump, with precise and stable dosing as its main features. Therefore, they are widely used for chemical dosing in drinking water and wastewater treatment processes. The sealing material of EDP series dosing pumps can be selected from FPM or EPDM, and special materials can be customized.
Main features | EDP-ED |
Flow range | 0.4 – 110l/h |
Maximum pressure | 20 bar |
Liquid contact material | PVDF (pump head), PTFE (diaphragm), EPDM or FPM (sealing ring), and ceramic (valve ball) |
Control mode | Manual control and automatic control |
Digital display mode | TPG type: Flow manual and automatic adjustment (4-20mA analog current signal/digital pulse signal input control) |
Digital display mode | TPR type: Built in PH/ORP monitor, automatically controls the flow rate of the pump based on the PH/ORP value measured by the monitor |
Voltage range | Stable operation within 100-240Vac, 50/60Hz |
Communication method | Optional Modbus RTU RS485 serial interface |
Advanced technique | Electromagnetic drive technology algorithm held by patents |
Installation method | Easy and convenient to install, packaged with a wall bracket for quick installation by users |
Sealing material | Customers can also choose PTFE material for sealing |
Strong compatibility | PVDF pump head is the standard configuration for pumps |
Sealing performance | Stable and reliable, customers can choose the standard FPM or EPDM material seal according to the properties of the intended medium to be added |
Diaphragm lifespan | The diaphragm is made of pure solid PTFE material and has a service life of over five years |
Sturdy and durable | The shell is sturdy, durable, and has a long service life |
