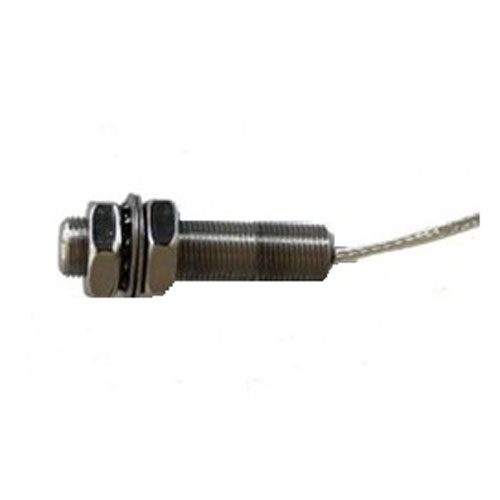

The ETS-MPS series magnetic proximity switch utilizes electromagnetic working principles and is made with advanced technology, making it a type of position sensor. It changes the position relationship between sensors and objects, utilizes the transformation relationship between magnetic quantities and other physical quantities, and uses magnetic fields as a medium to convert non electric or electromagnetic quantities into desired electrical signals, thereby achieving the purpose of control or measurement. Magnetic proximity switches can detect the maximum detection distance with a small switch volume. It can detect magnetic objects (usually permanent magnets) and generate a trigger switch signal output.

Product features:

1.Easy installation

2. No contact, no mechanical wear, suitable for high-frequency reciprocating motion environment

3. High temperature and high pressure resistance

4.Strong anti-interference ability, suitable for use in harsh dust environments

5. Fully sealed design, vibration resistant, long service life

6. 5~48 VDC ultra wide applicable voltage, optional two-wire non-polar wiring

7.Induction magnetic pole: S pole

8.Switching frequency: 30 KHz

9.Maximum reliable sensing distance: 200mm

10.Working temperature:- 30~+130℃

11.Protection level: IP68

Widely used:

In industrial production, automation also requires non-contact position detection of metal objects, which requires high wear resistance and reliability. Therefore, magnetic proximity switches are the best choice. Magnetic proximity switches are used for position determination of pneumatic, hydraulic, cylinder, and piston pumps, and are widely used in industries such as machine tools, metallurgy, petrochemicals, wastewater treatment, and thermal power plants. In automatic control systems, it can be used as a limiting, counting, positioning control, and automatic protection link, with applications covering the entire industry.
